high efficient  air blowing system
Pre     next

high efficient air blowing system

  • Description
  • Make an Inquiry

high efficient air blowing system

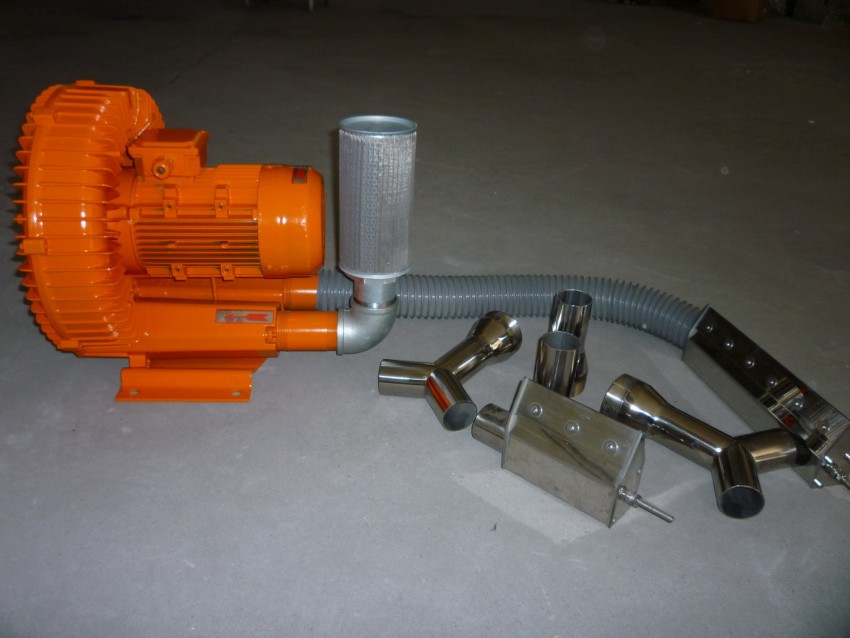

high efficient air blowing system is consist of air blower,air hose, air knife ,fitting,etc,

air blower also name as vortex blower air pump which can work matach the Air knife can providewith my company, it improve drying efficiency. , Fan blade, wind cover made the ADC12 are the world's hardest material,
Second, the fan bearings, high temperature high speed imported bearing, at 2800 rpm with 50Hz, in the case of 60Hz 3450 rpm, lubrication-free, 150,000 hours of maintenance-free, equivalent to run continuously for 17 years.
third, noise reduction inside of air blower, so as to achieve low noise.

part name

rated voltage(V) rated power(KW) max PP(KPA) max NP(KPA) max flow rate(M3/H) weight(KG) volume(CM3)
HB-370 220-380 0.37 15 13 85 9.5 27X25X25
HB-550 220-380 0.55 18 17 100 13.5 28X28X37
HB-750 220-380 0.75 23 20 140 16.5 31X29X30
HB-1100 220-380 1.1 30 24 180 21.5 36X34X34
HB-1500 220-380 1.5 32 26 250 23.5 36X34X34
HB-2200 380 2.2 38 30 300 38 41X40X40
HB-3000 380 3.0 41 33 360 42 42X41X43
HB-3800 380 3.8 46 37 380 46.5 42X41X43
HB-4000 380 4.0 50 40 420 48 48X43X42
HB-5500 380 5.5 56 45 460 61 49X52X47
HB-7500 380 7.5 60

50

520 75

49X52X47
